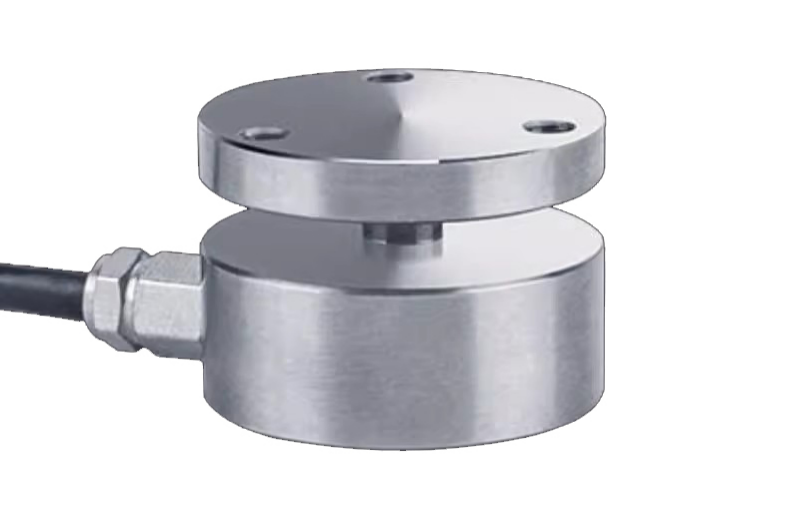

Flat Diaphragm Force Sensor CHHBM-13

Technical Specifications:

• Capacity: 5, 10, 20, 50, 100, 200/300, 500 kg, 1T, 2T
• Sensitivity: 1.0~2.0 ±0.1 mV/V
• Input Impedance: 735 ±35 Ω
• Output Impedance: 700 ±3 Ω
• Overall Accuracy: 0.1% F·S
• Creep: ±0.05% F·S / 30 min
• Excitation Voltage: 5~12V DC
• Non-linearity: ±0.05% F·S
• Operating Temperature Range: -20~+70℃
• Hysteresis Error: ±0.05% F·S
• Safe Overload: 120% F·S
• Repeatability Error: ±0.05% F·S
• Protection Rating: IP66
• Zero Temperature Coefficient: ±0.03% F·S / 10℃
• Material: Stainless steel
• Insulation Resistance: ≥2000MΩ
• Cable: Ф3 × 2000 mm
