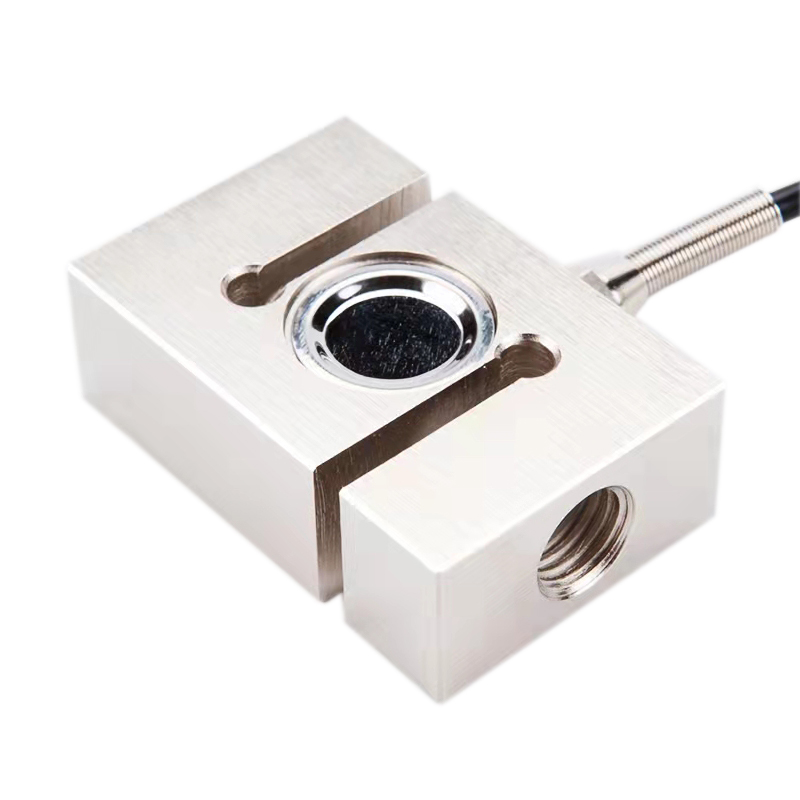

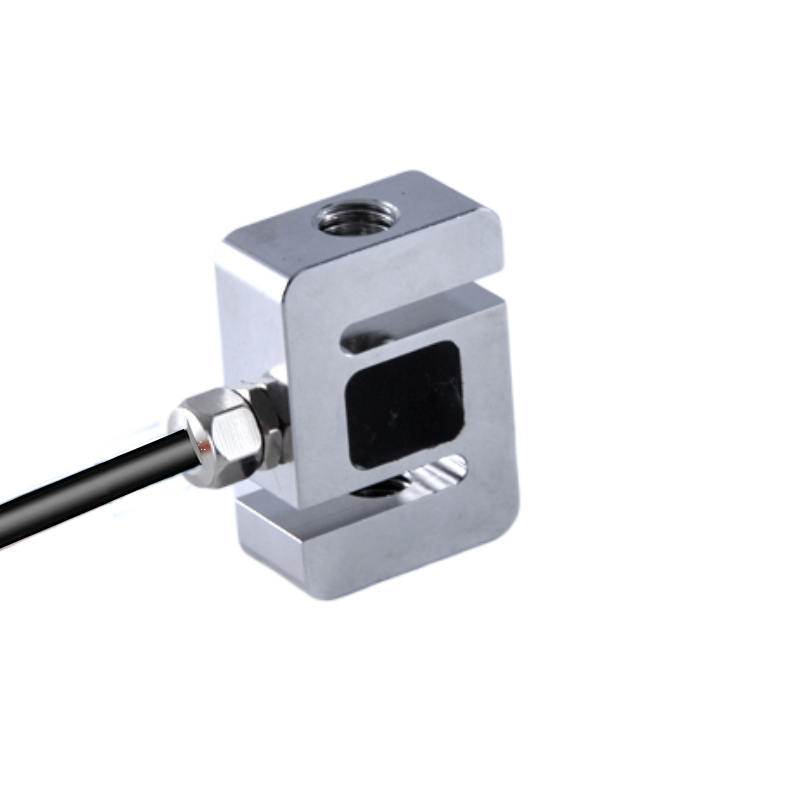

S-Type Tension and Compression Sensor CHLBS-T

Technical Specifications:

• Capacity: 50, 100, 200, 300, 500 kg, 1T, 2T
• Input Impedance: 385 ±35 Ω
• Output Impedance: 350 ±3 Ω
• Sensitivity: 2.0 ±0.1 mV/V
• Overall Accuracy: 0.05% F·S
• Insulation Resistance: ≥2000MΩ
• Creep: ±0.03% F·S / 30 min
• Excitation Voltage: 5~12V DC
• Non-linearity: ±0.03% F·S
• Operating Temperature Range: -20~+70℃
• Hysteresis Error: ±0.03% F·S
• Safe Overload: 120% F·S
• Repeatability Error: ±0.03% F·S
• Protection Rating: IP65
• Zero Temperature Coefficient: ±0.03% F·S / 10℃
• Material: Alloy steel
• Output Temperature Coefficient: ±0.03% F·S / 10℃
• Cable: Ф5 × 2000 mm
