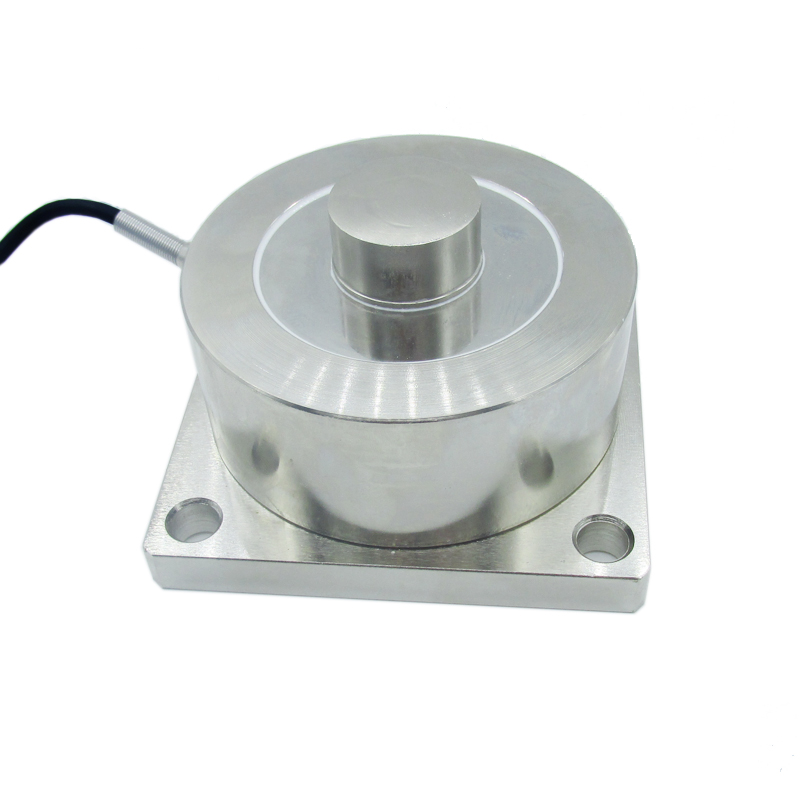

Spoke-Type Tension and Compression Sensor CHLBU-3

Technical Specifications:

• Capacity: 300, 500 kg, 1T, 2T, 3T, 5T, 7T, 10T, 20T, 30T, 50T, 100T
• Sensitivity: 2.0 mV/V
• Input Impedance: 380 ±10 Ω / 750 ±15 Ω
• Output Impedance: 350 ±3 Ω / 700 ±5 Ω
• Overall Accuracy: 0.03~0.1% F·S
• Insulation Resistance: ≥5000MΩ
• Creep: ±0.03% F·S / 30 min
• Excitation Voltage: 5~12V DC
• Non-linearity: ±0.03% F·S
• Hysteresis Error: ±0.03% F·S
• Safe Overload: 150% F·S
• Repeatability Error: ±0.03% F·S
• Protection Rating: IP66
• Zero Temperature Coefficient: ±0.03% F·S / 10℃
• Material: Alloy steel / Stainless steel
• Output Temperature Coefficient: ±0.03% F·S / 10℃
• Cable: Ф5 × 2000 mm
