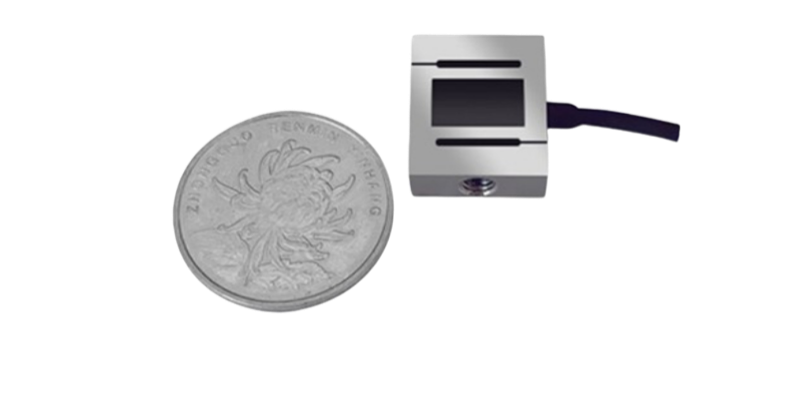

Micro Tension and Compression Sensor CHLBS-2

Technical Specifications:

• Capacity: 0.5, 1, 2, 5, 10, 20, 50, 100 kg
• Input Impedance: 350 ±5 Ω
• Sensitivity: 1.5 ±0.5 mV/V
• Output Impedance: 350 ±3 Ω
• Overall Accuracy: 0.1% F·S
• Insulation Resistance: ≥2000MΩ
• Creep: ±0.05% F·S / 30 min
• Excitation Voltage: 5~12V DC
• Non-linearity: ±0.05% F·S
• Operating Temperature Range: -20~+70℃
• Hysteresis Error: ±0.05% F·S
• Safe Overload: 120% F·S
• Repeatability Error: ±0.05% F·S
• Protection Rating: IP65
• Zero Temperature Coefficient: ±0.03% F·S / 10℃
• Material: Special stainless steel
• Output Temperature Coefficient: ±0.03% F·S / 10℃
• Cable: Ф3 × 2000 mm
