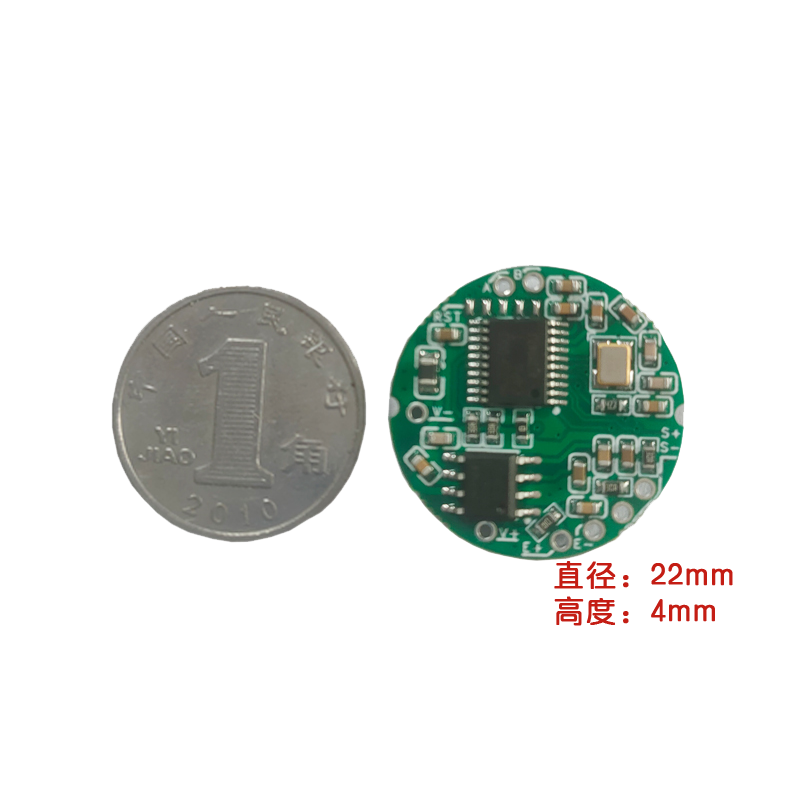

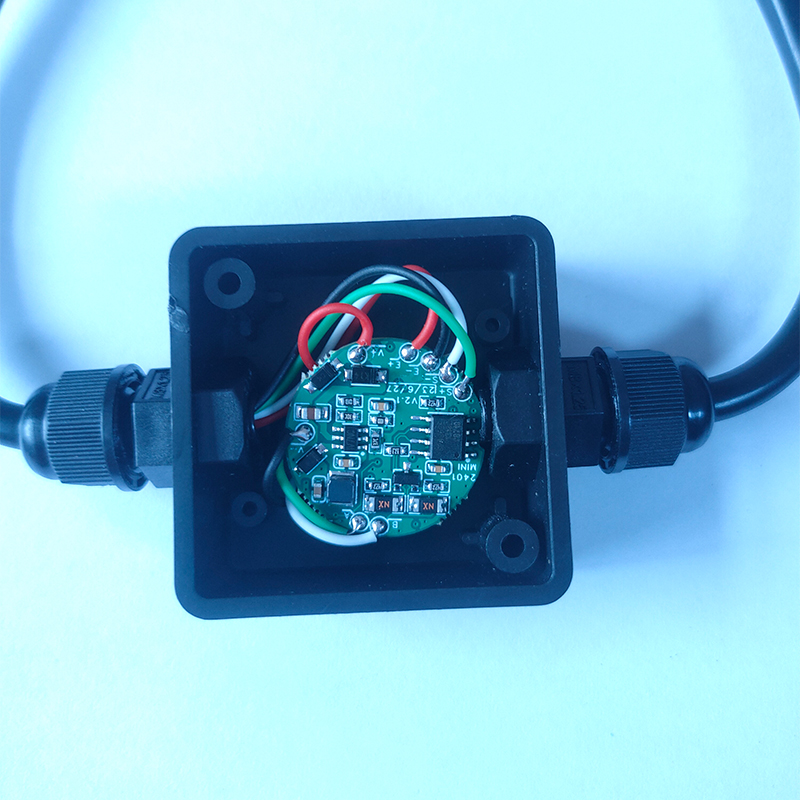

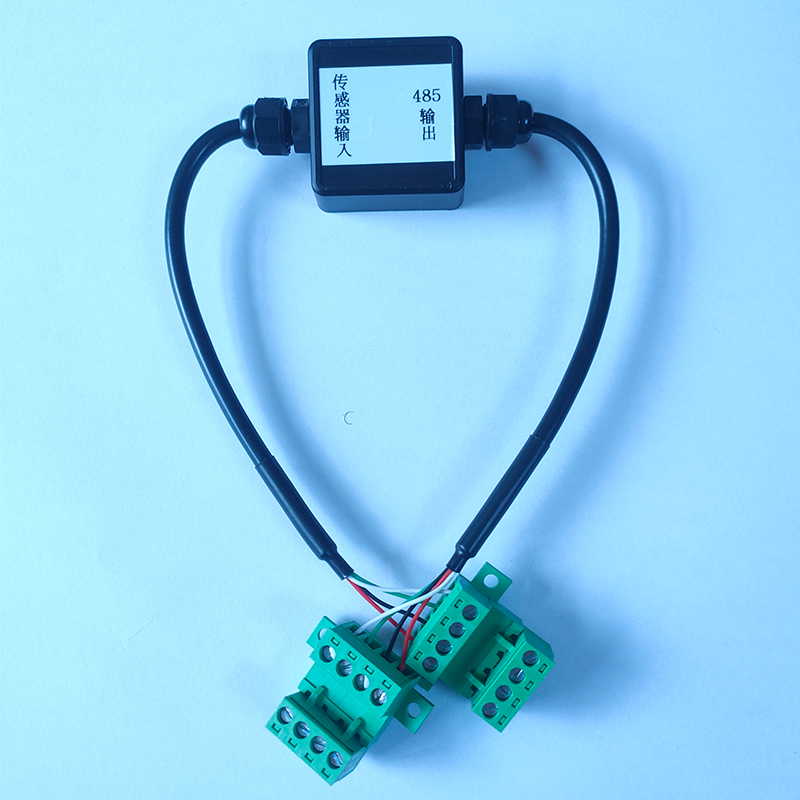

Digital Converter CHFQ-06-M

Technical Specifications

• Operating Voltage: DC7V~DC28V
• Input Load: Supports 1 × 350Ω sensor
• Compatible Sensitivity Range: 1.0~2.0mV/V
• Output Signal: RS485 digital output
• Operating Temperature Range: -20~70℃
• Excitation Voltage: 5V
• Power Consumption: 0.2W
• Operating Humidity: 10%RH – 90%RH (non-condensing)
• Overall Accuracy: 0.03%F·S
• Wiring Diagram: (Specify details)
