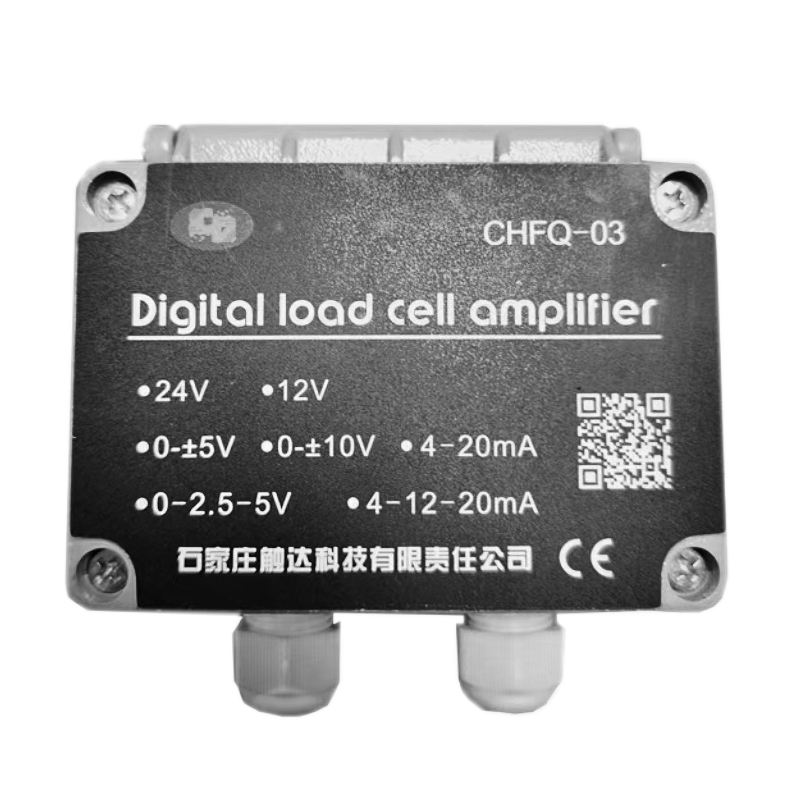

Analog Converter CHFQ-03

Technical Specifications

• Operating Voltage: DC12V / DC24V
• Input Load: Supports up to 8 × 350Ω sensors
• Compatible Sensitivity Range: 0.8~3.0mV/V
• Output Signal: 0-3.3V, 0-±5V, 0-±10V, 4-20mA, 4-12-20mA
• Operating Temperature Range: -20~70℃
• Housing Material: Cast aluminum
• Power Consumption: 0.3W
• Operating Humidity: 10%RH – 90%RH (non-condensing)
• Overall Accuracy: 0.05%F·S

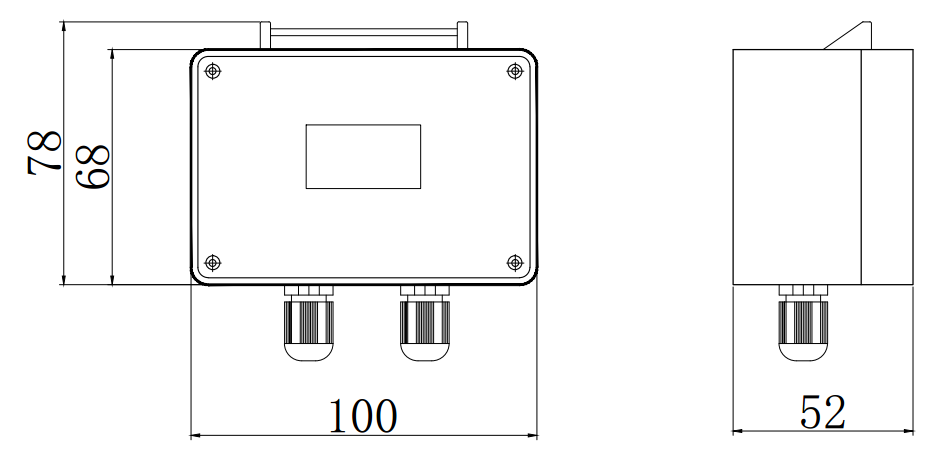

• Dimensions (mm): (Specify exact size)
