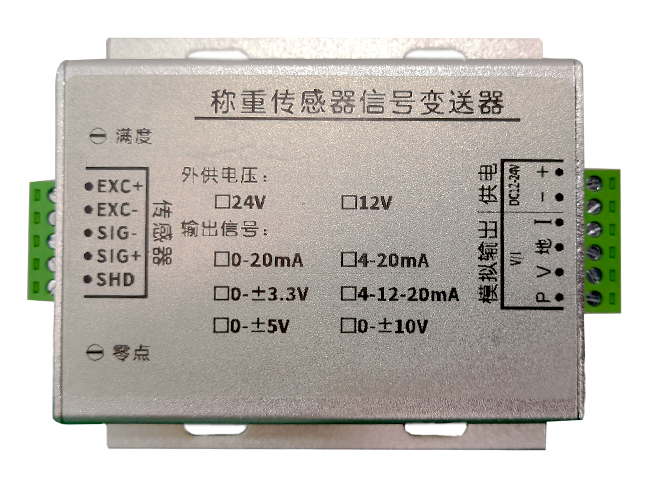

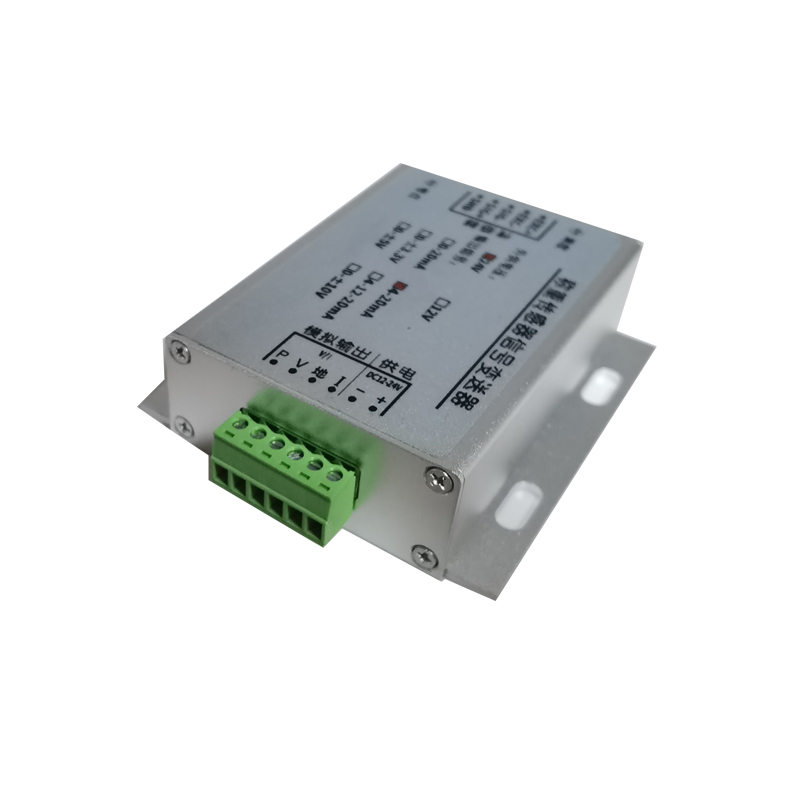

Analog Converter SH-605

Technical Specifications

Operating Voltage: DC12V / DC24V
Input Load: Supports up to 8 × 350Ω sensors
Compatible Sensitivity Range: 0.8~3.0mV/V
Output Signal Options:
- 0-±3.3V
- 0-±5V
- 0-±10V
- 4-20mA
- 4-12-20mA
- 0-20mA
Operating Temperature Range: -20~70℃
Housing Material: Aluminum alloy
Power Consumption: ≤2W
Operating Humidity: 10%RH – 90%RH (non-condensing)
Overall Accuracy: 0.03%F·S
Dimensions (mm): (Specify exact size)

product details

Product Features

Fully domestic chip design, ensuring high localization rate.
Simultaneous voltage and current output, maintaining stable performance even with voltage fluctuations.
High-performance design, widely used in military applications and scientific research laboratories.

Applicable To

Ideal for projects requiring high localization rates. Due to its powerful performance, it is extensively used in military, industrial, and laboratory applications.
