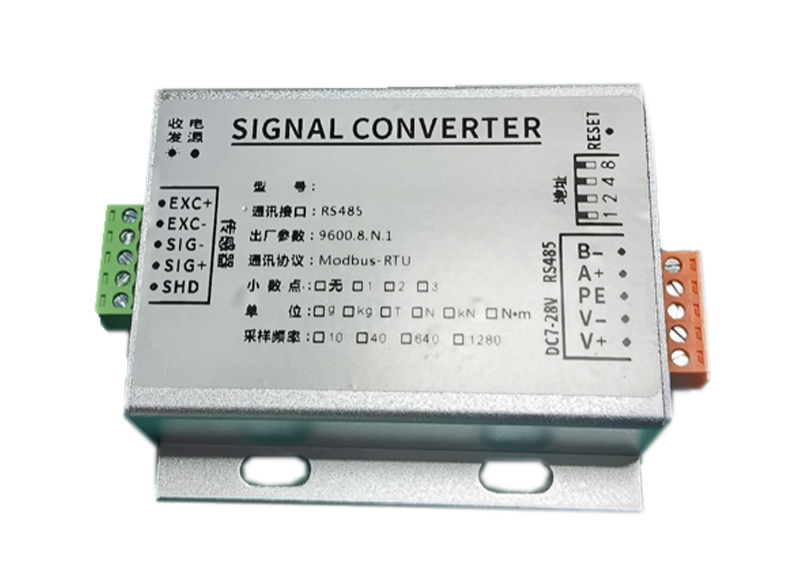

Digital Converter CHFQ-09
Digital Converter CHFQ-09
Technical Specifications
- Operating Voltage: DC7V~DC28V
- Input Load: Supports up to 8 × 350Ω sensors
- Compatible Sensitivity Range: 0.8~3.0mV/V
- Output Signal: RS485
- Operating Temperature Range: -40~85℃
- Housing Material: Aluminum alloy
- Power Consumption: ＜1W
- Operating Humidity: 10%RH – 95%RH (non-condensing)
- Overall Accuracy: 0.003%F·S

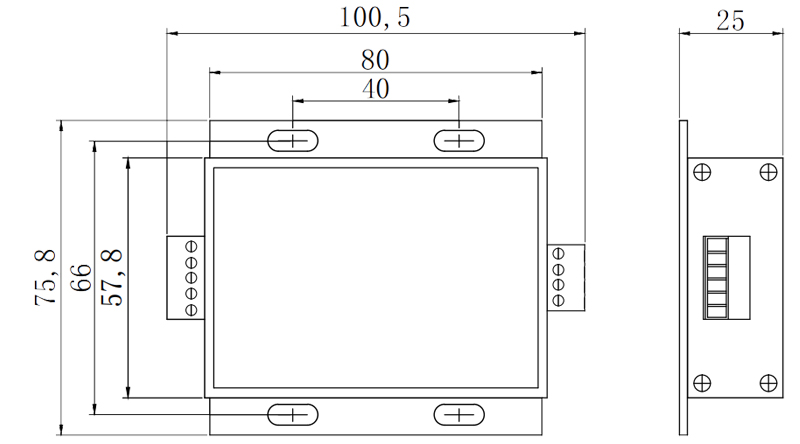

- Dimensions (mm): (Specify exact size)
product details
Product Features
- Aluminum alloy housing, strong anti-interference capability.
- Imported chips ensure stable and reliable output.
- Surge protection and isolation for enhanced durability.
Applicable To
This product is suitable for weighing, batching, force measurement, and various industrial applications. The standard Modbus-RTU communication protocol allows easy integration with PLC, DCS, microcomputers, and other devices, serving as a front-end signal processing module for weighing systems.
