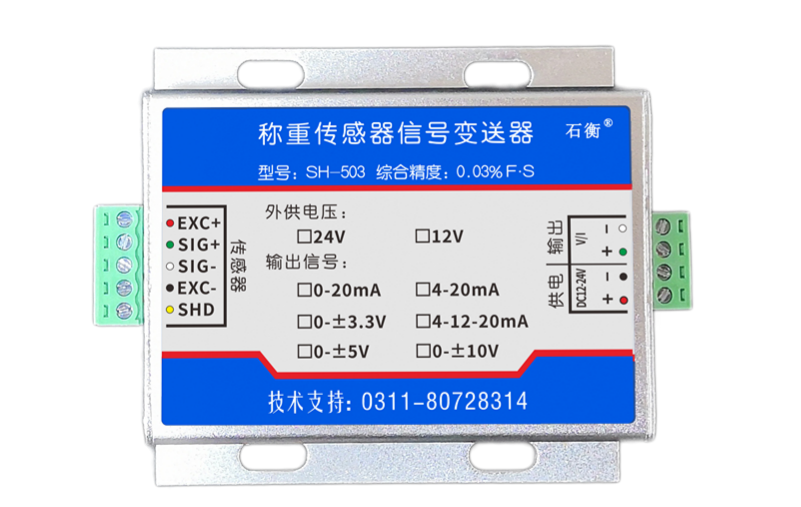

Analog Converter SH-503

Technical Specifications

Operating Voltage: DC12V~DC24V
Input Load: Supports up to 8 × 350Ω sensors
Compatible Sensitivity Range: 0.8~3.0mV/V
Output Signal Options:
- 0-±3.3V
- 0-±5V
- 0-10V
- 4-20mA
- 4-12-20mA
Operating Temperature Range: -20~70℃
Housing Material: Aluminum alloy
Power Consumption: 0.3W
Operating Humidity: 10%RH – 90%RH (non-condensing)
Overall Accuracy: 0.05%F·S

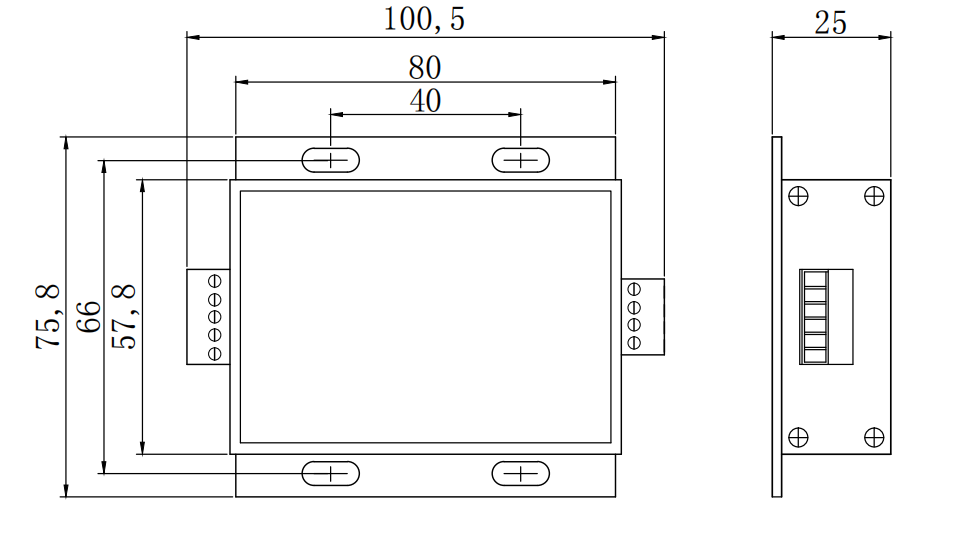

Dimensions (mm): (Specify exact size)

product details

Product Features

Aluminum alloy housing, strong anti-interference capability.
Imported chips ensure stable and reliable output.
Suitable for environments with low interference, making it ideal for sorting equipment, vending machines, and other applications.

Applicable To

Designed for weighing, tension, torque, and other strain-based sensors. Best used in low-interference environments for stable and precise measurements.
