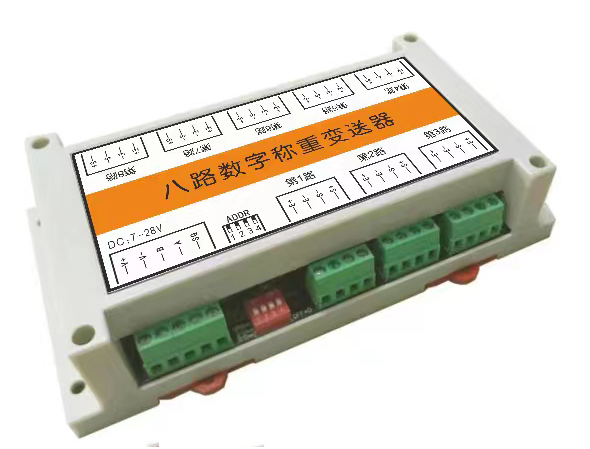

Digital Converter CHFQ-08

Technical Specifications

Operating Voltage: DC7V~DC28V
Input Load: Single channel supports 1-8 × 350Ω sensors
Compatible Sensitivity Range: 0.8~3.0mV/V
Output Signal: RS485
Operating Temperature Range: -40~85℃
Excitation Voltage: 5V ±3%
Power Consumption: ≤3W
Operating Humidity: 10%RH – 90%RH (non-condensing)
Overall Accuracy: 0.003%F·S

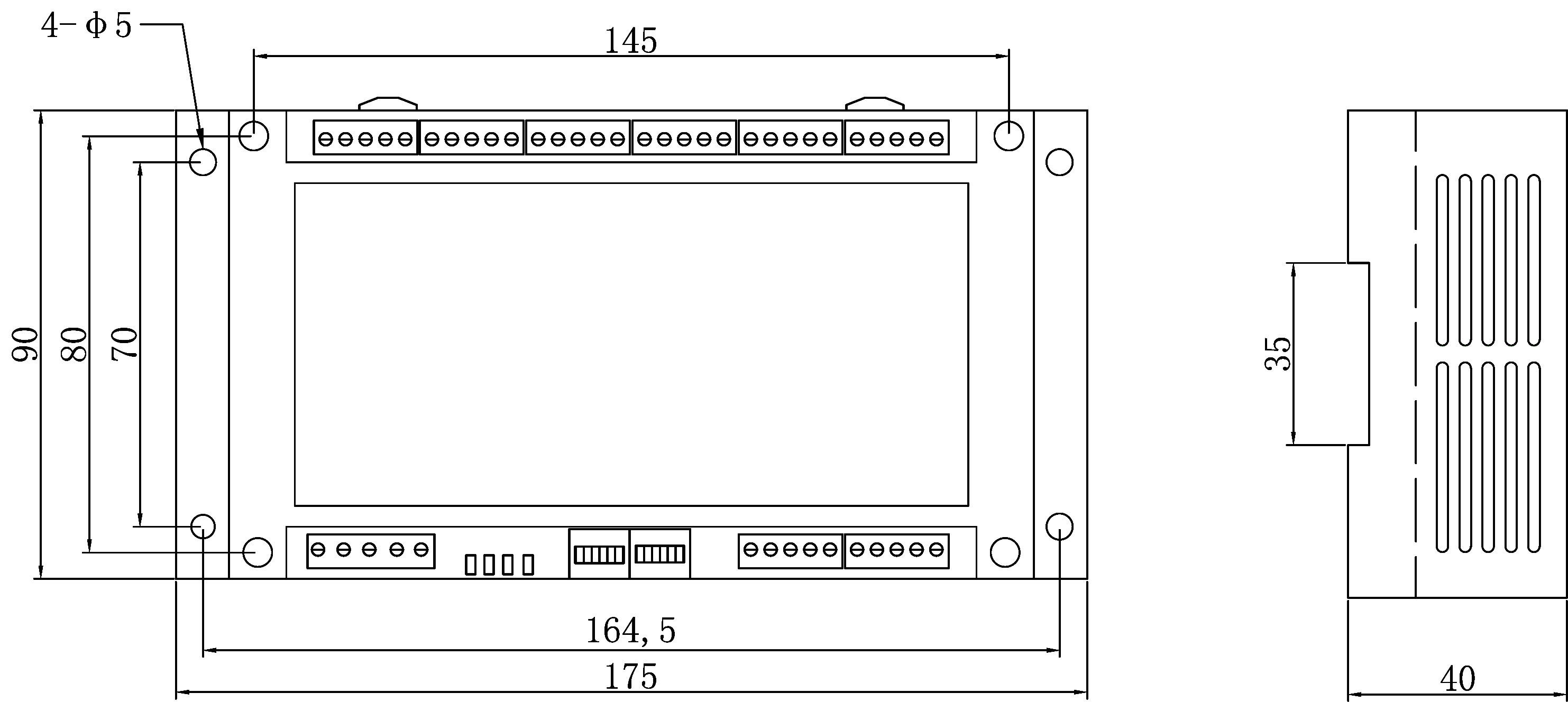

Dimensions (mm): (Specify exact size)

product details

Product Features

Optocoupler isolation, power isolation, surge protection, and support for 8-channel simultaneous sampling at 1280Hz.

Applicable To

Suitable for weighing, batching, force measurement, and various industrial applications. The standard Modbus-RTU communication protocol enables seamless integration with PLC, DCS, microcomputers, and other devices, serving as a front-end signal processing module for weighing systems.
