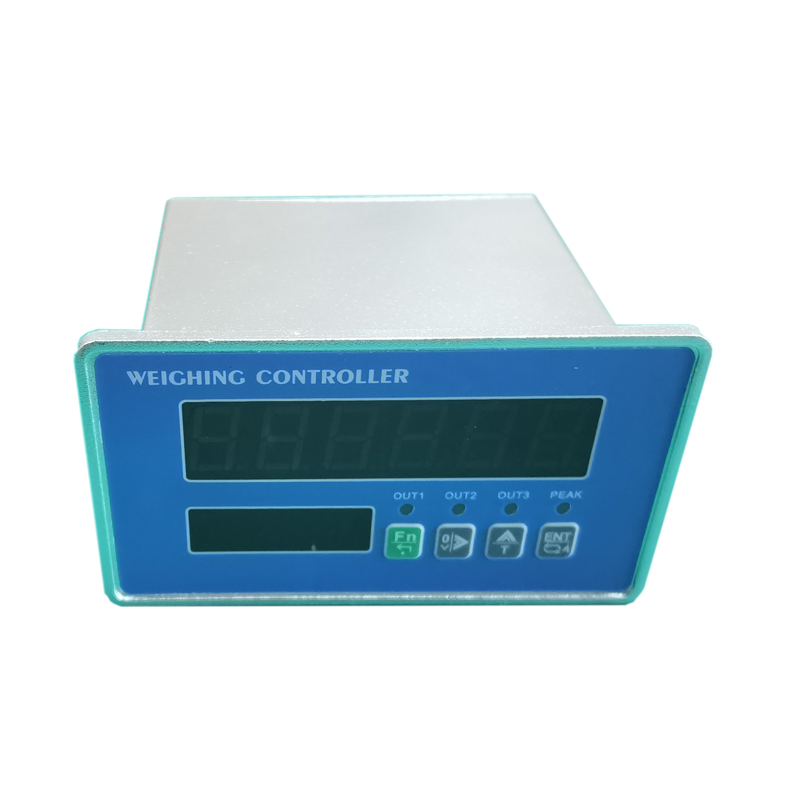

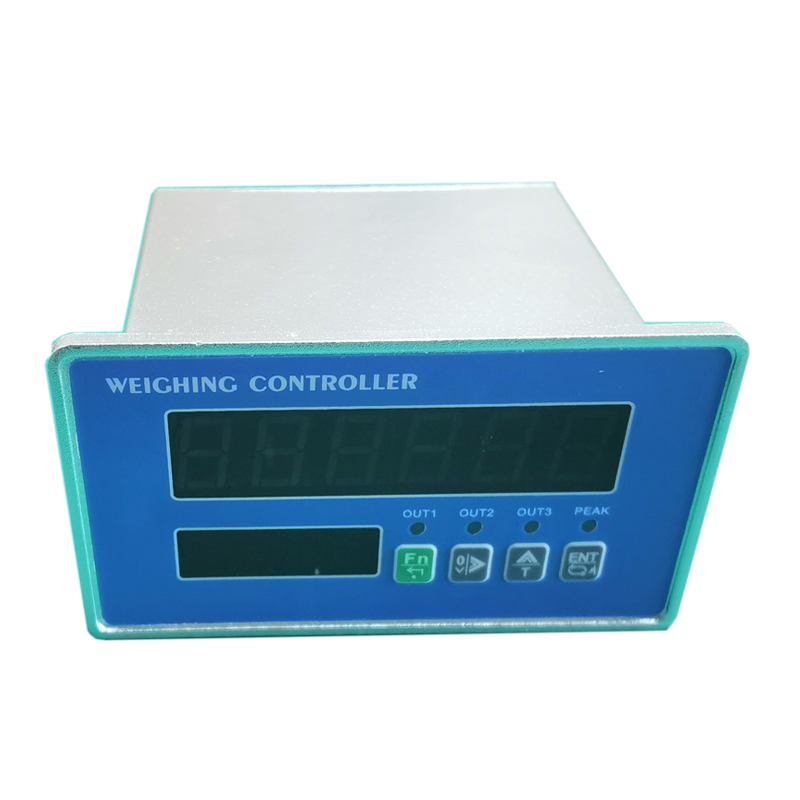

High-Speed Data Acquisition Instrument SH-715
High-Speed Data Acquisition Instrument SH-715
Technical Specifications:
- Internal Resolution: 24-bit Σ-Δ ADC, internal resolution 1/1,000,000
- Power Supply: DC 10-28V or AC 85-265V (nominal 100-240V, 50/60Hz), wide voltage input, choose one

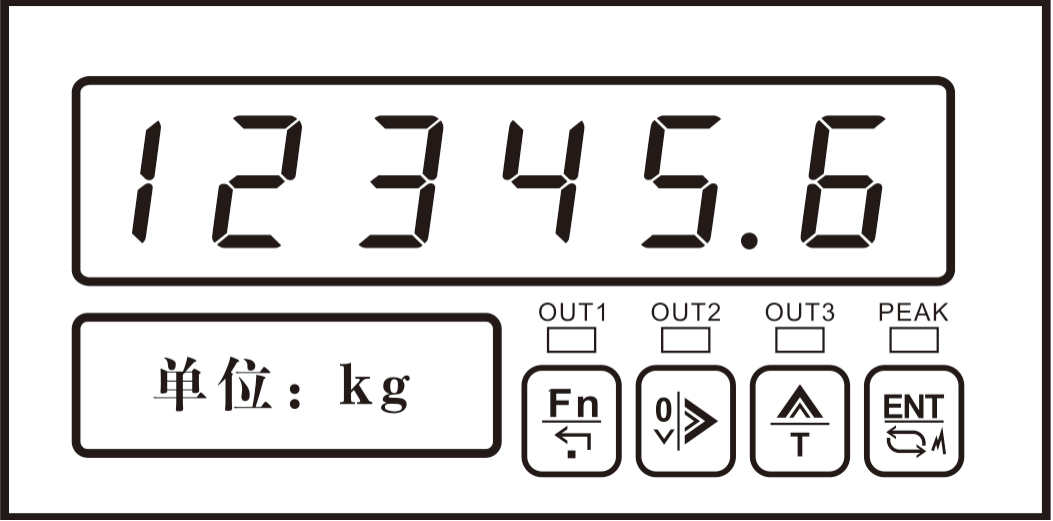

- Display: Primary screen – 6-digit segment display / Secondary screen – Chinese LCD display
- Display Resolution: 1/100,000
- Industry: Industrial / Metrology
- Maximum Power Consumption: 5W
- Load Capacity: Supports 1 to 8 load cells (350Ω each)
- Operating Temperature: -25°C to +45°C
- Signal Range: 0.5~3.0 mV/V
- Relative Humidity: <85% RH
- Excitation Voltage: 5V
- Weight: Approx. 400g
- Sampling Frequency: Selectable: 10Hz, 40Hz, 640Hz, 1280Hz
- Enclosure Material: Aluminum profile + ABS
- Non-Linearity: 0.005% F.S
- Relay Load Capacity: 250VAC/3A, 30VDC/3A
product details
Product Features:
- Aluminum profile casing, high durability
- High-speed acquisition, stable output
- Surge protection and anti-interference
- High comprehensive accuracy
Key Functional Advantages:
- Peak hold
- External zero reset
- Parameter rollback
- Secondary screen with Chinese LCD display
- Segmented calibration for analog output
- RS485 active transmission mode, achieving a true 1000Hz
- 10-point segmented correction
Model Selection:
| Model | Function Description |
|---|---|
| Basic Version | Primary screen – 6-digit segment display, Secondary screen – Chinese LCD display, 3 relay outputs, 1 digital input |
| Analog Output Version | Basic version + Analog output (0-5V, 0-10V, 0-5-10V, 0-20mA, 4-20mA, 4-12-20mA) |
| RS485 Output Version | Basic version + RS485 output |
| Full-Function Version | Basic version + Analog output + RS485 output |
